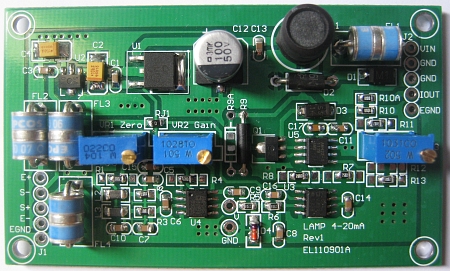

GEN SENSORES - ELANE - LC-TRANSMITTER - Load Cell Transmitter 4-20mA
BRAND: Elane China
MODEL: LC-Transmitter
TECHNICAL SPECIFICATIONS:
* Operating Temperature: 0...50°C
* Power Supply: DC 12V...24V 100mA max
* Output Current: 4...20mA
* Potentiometer Functions:
- W1: Zero Adjustment
- W2: Gain Adjustment
- W3: Initial Current Output for Zero Adjustment
