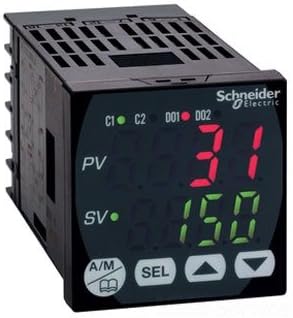

SCHNEIDER ELECTRIC - REG48PUN1RHU - Temperature Controller 48x48 100-240 V, UNIV, 1Rel
BRAND: SCHNEIDER ELECTRIC
MODEL: REG48PUN1RHU
TECHNICAL SPECIFICATIONS:
* Zelio Control Temperature Controller
* Analog Inputs:
- Thermocouple (types J, K, R, B, S, T, E, N, PLII)
- Current: 0…20 mA / 4…20 mA
- Voltage: 0…0.1 V / 0…10 V / 0…5 V / 1...5 V / 2...10 V
* Supply voltage: 100...240 VAC
* Accuracy: 0.3% of full scale
* Outputs: 1 relay output (220 VAC/3 A)
* Alarm output: 2 C/O
* Communication: Modbus
* Physical interface: Non-isolated RS485
* Display: 7-segment LCD, 4 digits
* Dimensions: 48 x 48 mm
Specifications
| Brand | SCHNEIDER ELECTRIC |
