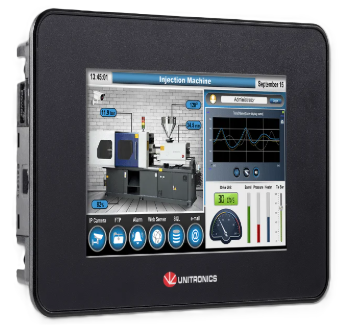

UNITRONICS US5-C5-TR22 UNISTREAM – UNICLOUD PLC+HMI B5 5”

BRAND: UNITRONICS
MODEL: US5-C5-TR22
TECHNICAL SPECIFICATIONS:
* PID auto-tuning, up to 64 loops
* Supply voltage: 24 VDC
* Inputs: 10 digital inputs, 2 analog inputs (0-10 V, 0/4-20 mA, 12-bit)
* Outputs: 2 NPN transistor outputs, 2 PWM outputs, 8 relay outputs
* 5" WVGA touchscreen (800x480 px)
* Integrated UniCloud cloud services
* microSD card slot
* Ethernet TCP/IP communication
* USB port
* Mini-USB port for programming
* RS485/RS232 serial port
* CANbus port
* Communication protocols: MQTT client, EtherNet/IP, Modbus TCP, CANopen, CAN Layer 2, UniCAN, SNMP, BACnet, KNX, M-Bus
