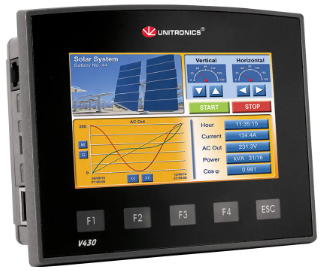

UNITRONICS - V430-J-R34 - V430-J- R34 flat panel 20DI/2DAI/12RO

BRAND: UNITRONICS
MODEL: V430-J-R34
TECHNICAL SPECIFICATIONS:
* Supply voltage: 24 VDC
* Inputs: 20 digital (3 can be used for high-speed operation, max. frequency 30 kHz); 2 analog/digital inputs (0–10 V, 0–20 mA, 4–20 mA; 10-bit)
* Outputs: 12 relay
* 1 built-in mini-USB port
* Display: TFT LCD graphic, 480x272 pixels, 4.3” touchscreen
* Programming: Ladder logic
* Memory: 512 KB for logic applications; 12 MB for images and 1 MB for fonts
* Dimensions: 136 x 105.1 x 61.3 mm
* Weight: 275 g (9.7 oz)
