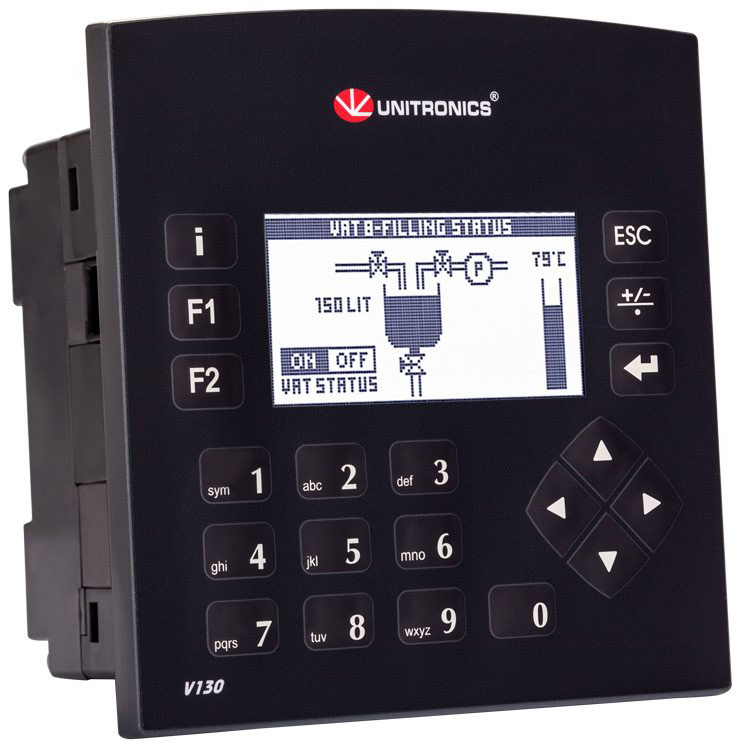

UNITRONICS - V130-J-TRA22 - OPLC 12DI/2DAI/4RO/4TO

BRAND: UNITRONICS
MODEL: V130-J-TRA22
TECHNICAL SPECIFICATIONS:
* Power supply: 24 VDC
* Inputs: 8 digital inputs (1 high-speed 30 kHz), 2 analog/digital inputs (14-bit, 0-10 V, 0-20 mA, 4-20 mA), 2 PT100/thermocouple or digital inputs.
* Outputs: 8 relay outputs, 2 analog outputs (12-bit, 0-10 V, 4-20 mA).
* 4 high-speed transistor outputs (4 NPN).
* Communication ports: 1 RS232/RS485 port.
