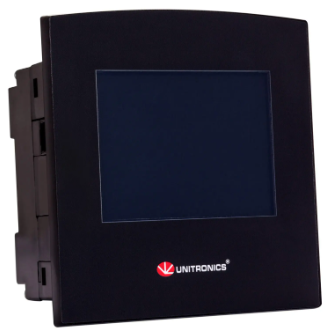

UNITRONICS - SM35-J-R20 - Samba 3,5" 10DI/2DAI/8RO
BRAND: UNITRONICS
MODEL: SM35-J-R20
TECHNICAL SPECIFICATIONS:
* Power supply: 24 V DC
* 10 digital inputs
* 2 digital/analog inputs (0 to 10 V, 0 to 20 mA, 4 to 20 mA, 10-bit)
* 8 relay outputs
* 3.5" TFT LCD display, 320x240 pixel resolution
* Remote I/O expansion: Use EX-RC1 adapters to further expand the number of inputs and outputs
* Application memory: Application logic 80 KB • Images: 1.5 MB • Fonts: 320 KB
* Scan time: 15 µs per 1K of typical application
* IP rating: IP65
Specifications
| Brand | UNITRONICS |
