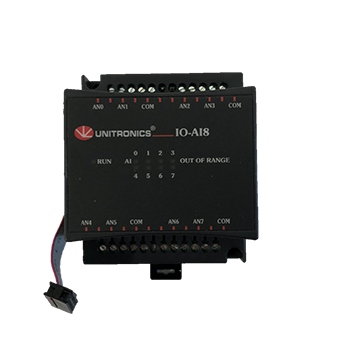

UNITRONICS - IO-AI8 - 8-Analog-input Expansion Module
BRAND: UNITRONICS
MODEL: IO-AI8
TECHNICAL SPECIFICATIONS:
* Nominal input voltage: 24 VDC
* 8 analog inputs: 0-10V, 0-20mA, 4-20mA
* Protection rating: IP20 / NEMA1
* Weight: 150 g (4.9 oz)
* Dimensions: 80 x 93 x 60 mm (3.15” x 3.66” x 2.362”)
* Status indicators:
- Green LED: Indicates a communication link is established between the module and the OPLC; turns off if the communication link fails.
- Red LED: Lights up when the corresponding input receives current or voltage exceeding the input range.
Specifications
| Brand | UNITRONICS |
