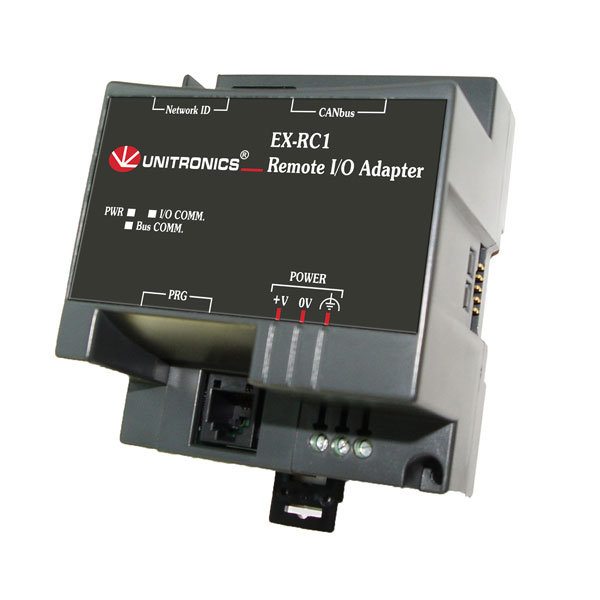

UNITRONICS - EX-RC1 - Remote expansion adapter via CANbus
BRAND: UNTRONICS
MODEL: EX-RC1
TECHNICAL SPECIFICATIONS:
* Capacity: Up to 8 expansion modules per adapter.
* Power supply: 12 or 24 VDC.
Quiescent current: 90 mA
* 1 RS232 port
* 1 CANbus port
* Dimensions: 80 x 93 x 60 mm
* Status indicators:
- PWR (Green LED): Lights up when powered.
- (I/O COMM) (Green LED): Lights up when communication is established between the adapter and other units.
- (Bus COM.) (Green LED): Lights up when communication is established between the adapter and the OPLC.
Specifications
| Brand | UNITRONICS |
