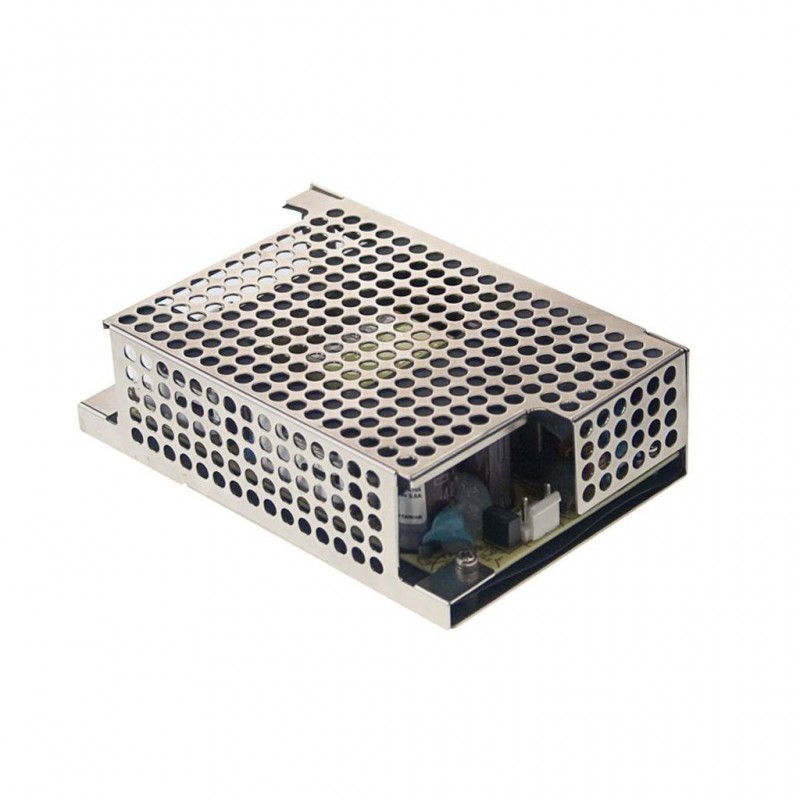

MEAN WELL - PSC-100B - 24V Switching Power Supply

BRAND: Mean Well
MODEL: PCS-100B
TECHNICAL SPECIFICATIONS:
* Input Voltage: 90-264 VAC / 127-370 VDC
* AC Current: 2.4A at 115 VAC; 1.25A at 230 VAC
* Output Voltage CH1/CH2: 27.6 VDC
* Output Current: CH1 4.75A; CH2 2.5A
* Rated Power: 100W
* Operating Temperature: -20°C to +70°C
PROTECTION:
* Overload: Hypo mode, automatically recovers after the fault condition is cleared. 105-150% of analog power output.
* Overvoltage: Power off, power back on to recover. CH1 28.98-37.26 V
